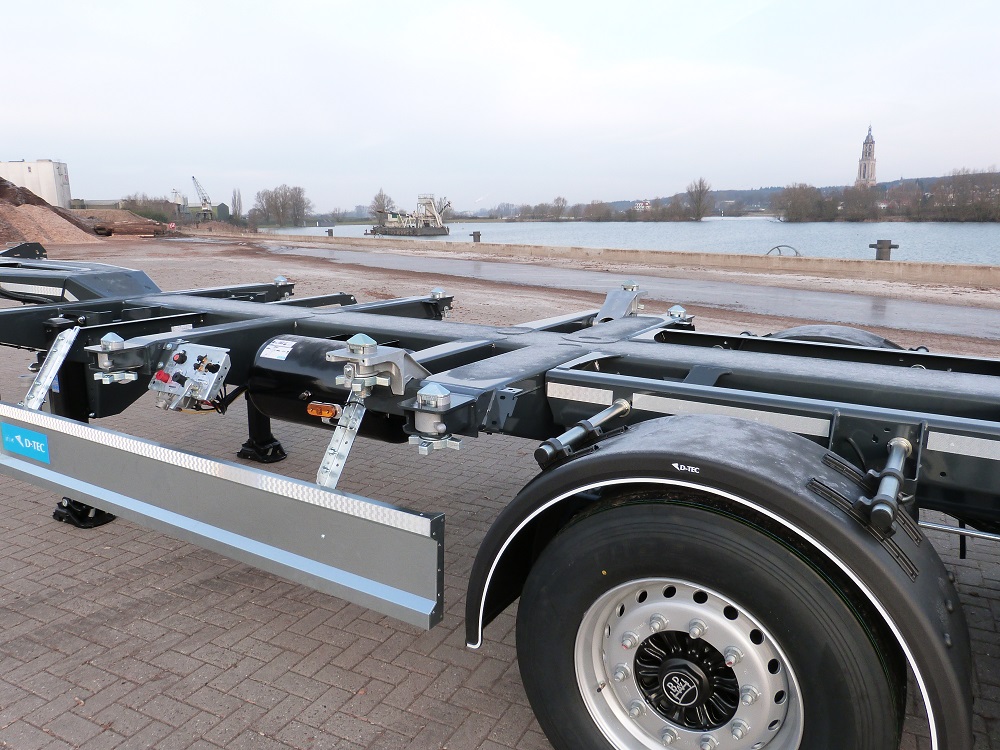

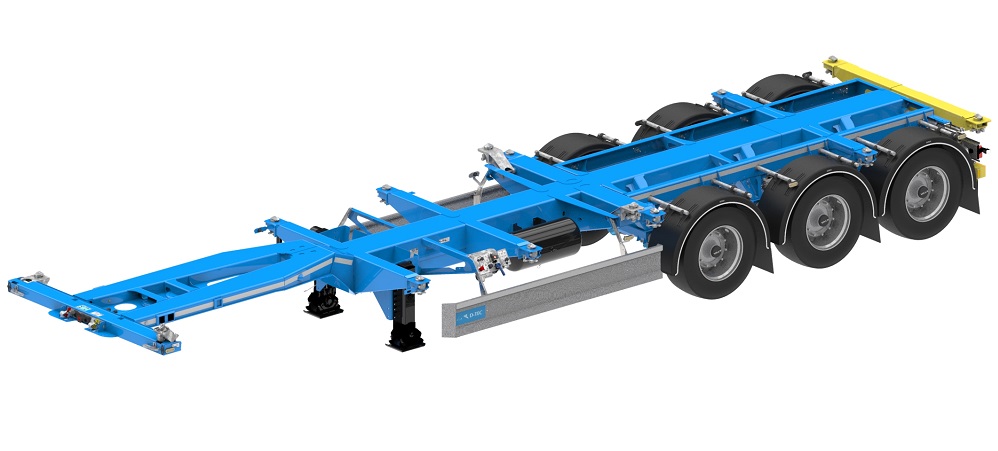

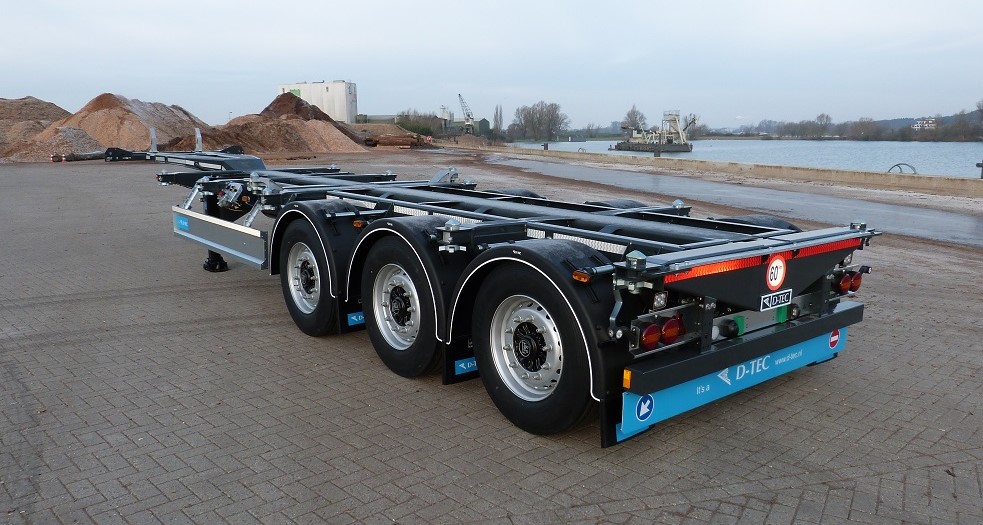

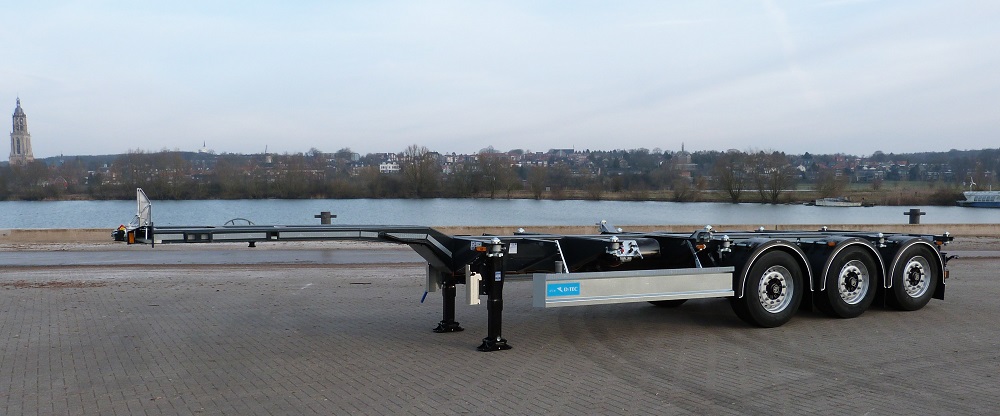

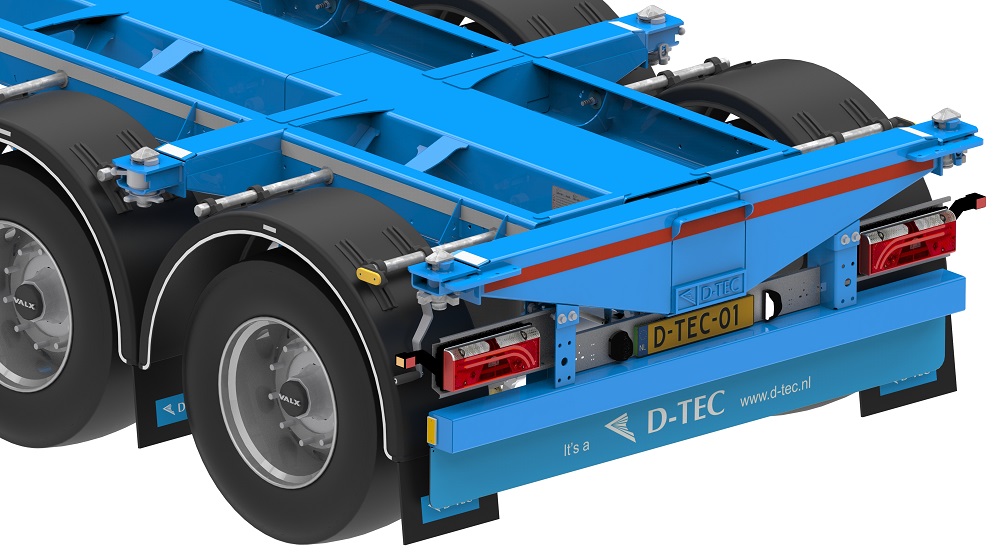

Portmaster PM-3-S

The D-TEC Portmaster is a container chassis with a telescopic rear. You can transport the following ISO containers with it: 20ft, 2x 20ft, 30ft, and 40ft. If provided with a Flexilock (slip head), 45ft containers can also be transported within the legal dimensions.

The D-TEC Portmaster (rear extension chassis) can very simply and quickly be changed to another container size. If you are making short trips around the terminal, you should therefore choose the Portmaster.

D-TEC Portmaster is the lightest rigid chassis, with a standard deadweight from 4.5 tons. Studies have shown that you can save 1000 litres of diesel a year with a 1000 kg lighter chassis. The maintenance costs are extremely limited due to the robust, simple design. The multifunctional chassis slides out fully mechanically, without any pneumatic components. This guarantees optimum operation in all weather conditions and a low outage. Using resilient, high strength steel enables the chassis to resist a great deal of distortion. This means, for example, that loading errors are less likely to cause permanent damage, thereby reducing repair costs.

The advantages of a PORTMASTER (S-line)

  • Extremely low deadweight (from 4.5 ton).
  • Robust quality, high quality steel prevents permanent distortion caused by any overload.

  • Designed for optional transport of all sizes box container, also centrally loaded 20ft tank containers.

  • Low-maintenance (only 2 lubrication points on the lading legs, mechanical operation).

  • Simple to operate.
